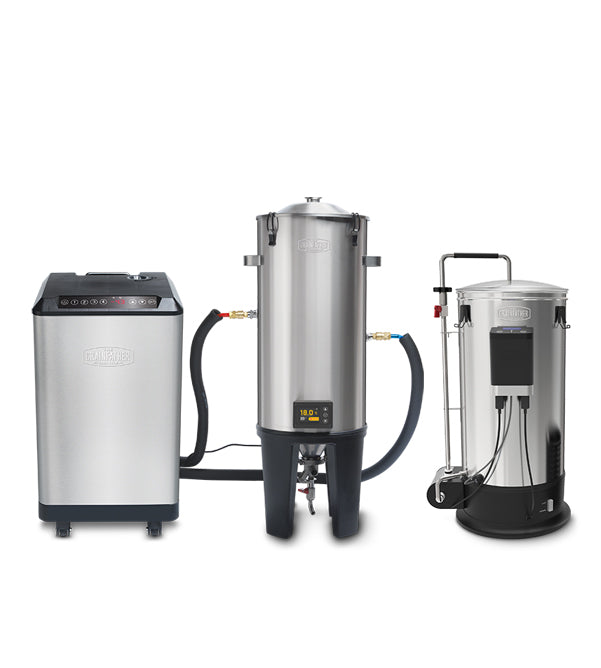

G30v3 Advanced Brewery Setup

G30v3 Brewing System

• 304 Grade stainless-steel body
• 220 - 240V
• 30 L Capacity
• Expandable grain basket to suit grain bills up to 9 kg
• A robust magnetic drive pump (6 W, 1800 RPM)
• Counter flow wort chiller which can cool wort to less than 20°C within approx. 20-30 minutes.
• Tempered glass lid for maximum durability, heating efficiencies and visibility during your brew day.
• Clips to easily convert your Grainfather into a home distillery with the Pot Still Attachment (sold separately) (add link to product page)
• Compatible with the Grainfather App

Required Specs for App:

iPhone/iPad:

• Hardware: iPhone 4S or higher.
• Software: iOS8 or higher, must have Bluetooth 4.0 or higher

Android:

• Hardware: Android 4.3 (API Level 18) or higher
• Software: Must have Bluetooth Low Energy (LE)/Bluetooth Smart

GF30 Conical Fermenter

• 304 Stainless-steel body (polished inner and brushed outer)
• 30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
• 30 W, 12 V heating power
• 50Hz/60Hz power adapter frequency
• 8 cm (1.5"") ferrule on lid (for pressure transfer attachments)
• 5 cm (2"") ferrule on bottom of cone
• Dual valve tap with 110 mm (4.3”) inlet

GC4 Glycol Chiller

• LED display
• 6 L (1.5 US Gal) glycol tank
• 300 W
• 220 – 240 V, 50Hz
• 390W x 450D x 656H (mm)
• Weight: 28.3 kg (62 lbs)

Note: When you receive your GC4 Glycol Chiller, you will also need to fill it up with a propylene glycol mixture. Refer to the GGlycol Chiller instructions that are provided for mixing, filling, and pump priming information.

G30v3 Brewing System

• Counter Flow Wort Chiller

GF30 Conical Fermenter

• GF30 Conical Fermenter
• Fermenter Lid
• Rubber Bung
• Bubbler Airlock
• Cone Plug
• Cone Plug Seal
• 5 cm (2") Tri Clamp
• Power Adapter and Wall Plug
• 2 m (6.5 ft) M12 3-Pin Power Cord
• Dual Valve Tap
• GF30 Conical Fermenter Controller

GC4 Glycol Chiller

• Wall outlet power cord with plug
• 3L propylene glycol
• Cooling connection couplers x 2
• 2m insulated hoses x 2
• Glycol funnel
• Silicone tube for priming pump
