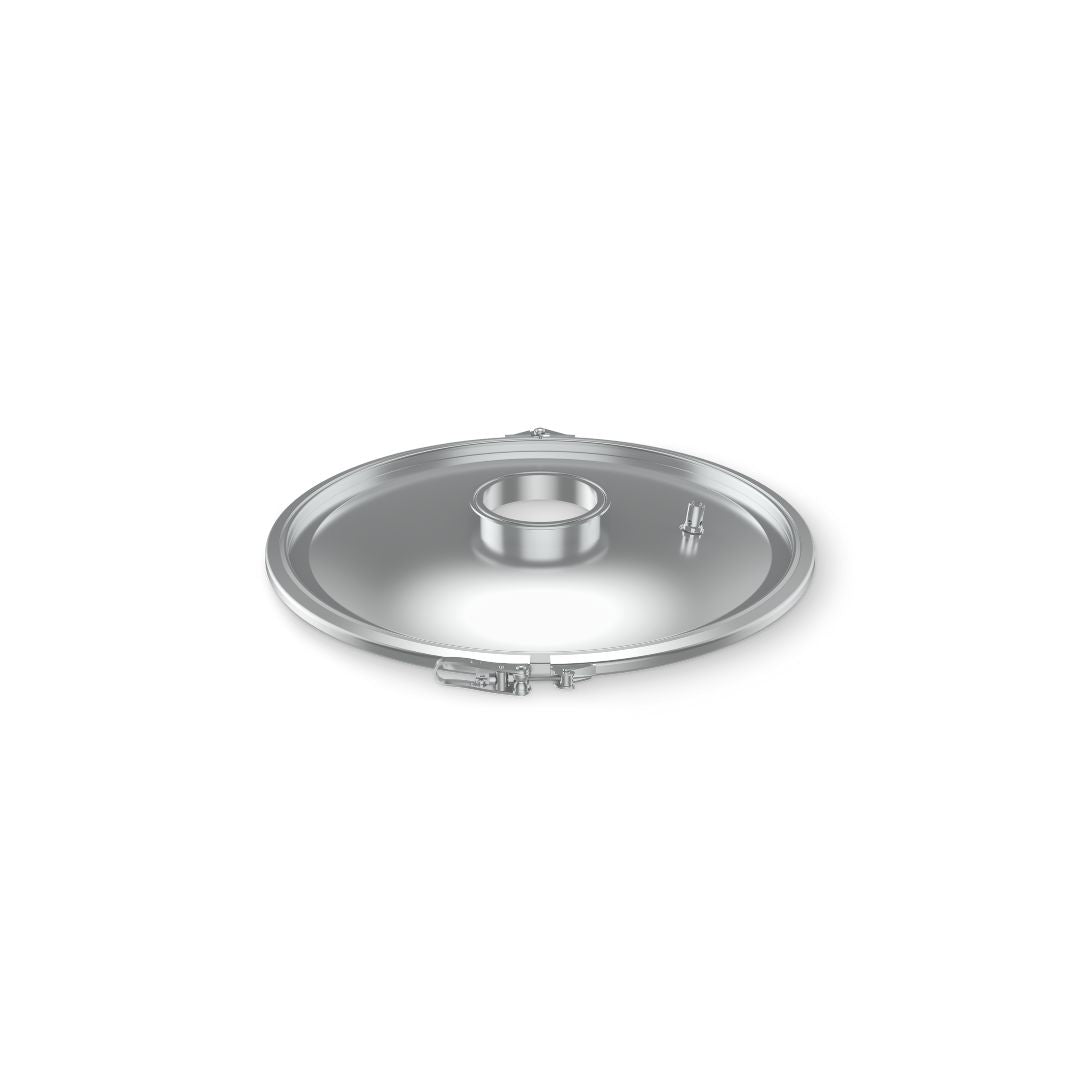

G40 & G70 Distilling Lid

Transform your G40 or G70 Brewing System into a reflux still or a pot still and craft all grain light and dark spirits. The G40 or G70 paired with the Distilling Lid, an Attachment Kit* and the appropriate Still Spirits condenser** offers an all-in-one automated brewing system that can also be used to distill spirits from grain.

The Distilling Lid can also be used as a steam condenser, minimising the collection of moisture on walls and ceilings when brewing indoors (when paired with the appropriate equipment).

*Using the Distilling Lid and one of our Attachment Kits allows you to attach either a Still Spirits T500 Reflux or T500 Alembic Condenser** to your brewing system:

• If you're looking to create high quality clean spirits such as vodka or neutral spirits for flavouring or infusing, choose the Distilling Lid + T500 Reflux Condenser Attachment Kit and a Still Spirits T500 Reflux Condenser**
• If you want to craft premium flavourful spirits such as whiskey, bourbon, rum and gin, choose the Distilling Lid + T500 Alembic Condenser Attachment Kit and a Still Spirits T500 Alembic Condenser**

**The Still Spirits T500 Alembic Condenser and Still Spirits T500 Reflux Condenser are sold separately.

IMPORTANT NOTES:

The G40 & G70 Distilling Lid is designed primarily for small to medium-sized still heads that do not have heavy, off-centre attachments. The lid is reasonably flexible and is sturdy enough to fit a still head that is within the following specifications:

• A still head height up to 1.1m (3.6 ft) from the lid.
• A still head weight up to 11kg (24 lbs), including up to 2kg (4.4lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160mm (6”) to the main column.

We recommend external support if:

• Your still exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the main still head (column) is noticeably leaning.
