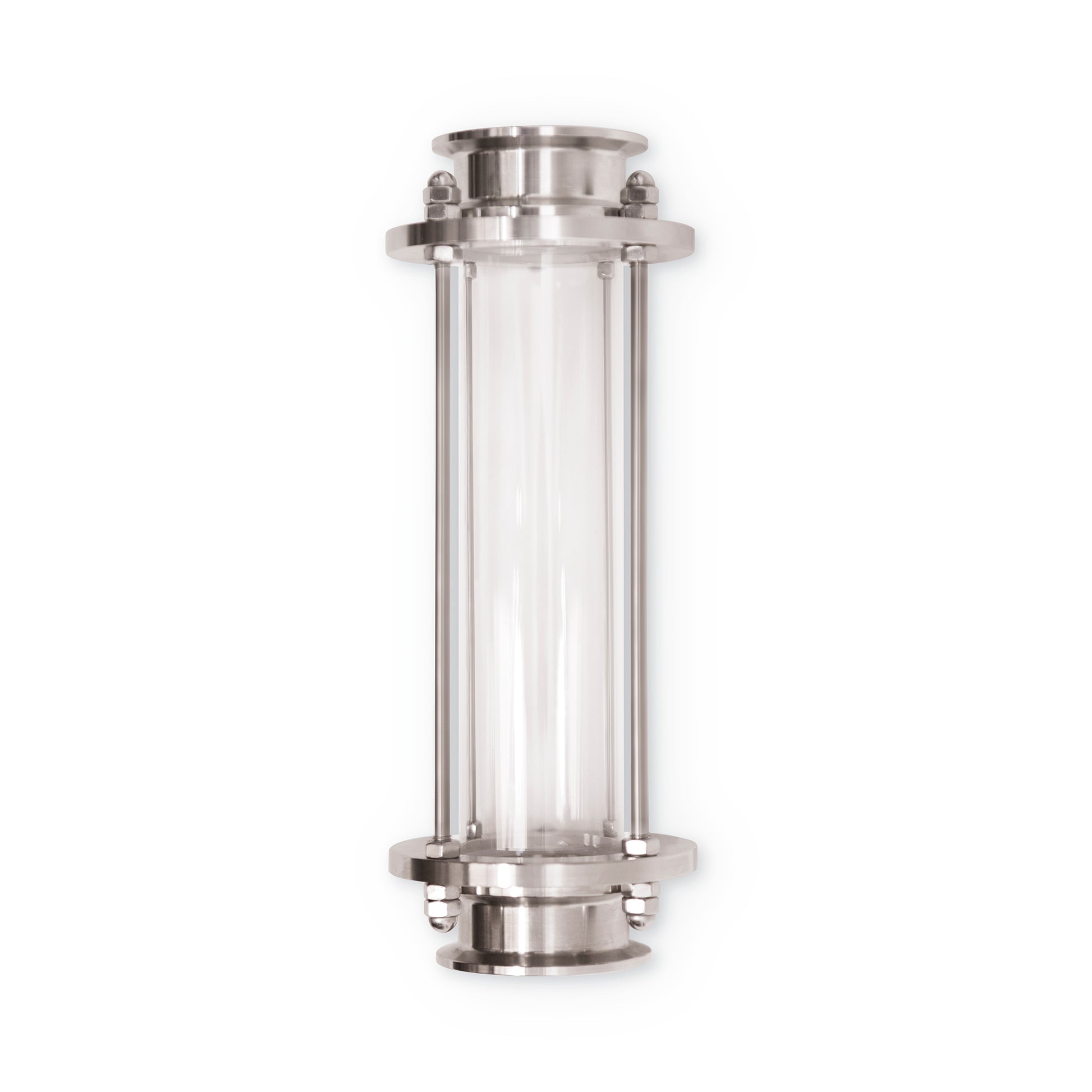

Still Spirits Sight Glass Botanical Basket Set

Constructed with 304 grade stainless steel and borosilicate glass.

Dimensions: 246mm (h) x 100mm (w) x 100mm (d)
Weight: 1.49 kg

Does this fit the Still Spirits T500 or Alembic Dome & Condenser?

The Sight Glass Botanical Basket Set is designed to accommodate those using 2" tri-clamp setups, which are common in converted brewing systems like the Grainfather G40 and G70, where the standard T500 Botanical Basket does not fit these setups.

Is there an adapter/bulk head attachment?

We do not currently have a 2" tri-clamp to DN40 threaded adapter or a bulkhead attachment. However, this may be something that can be sourced from elsewhere.

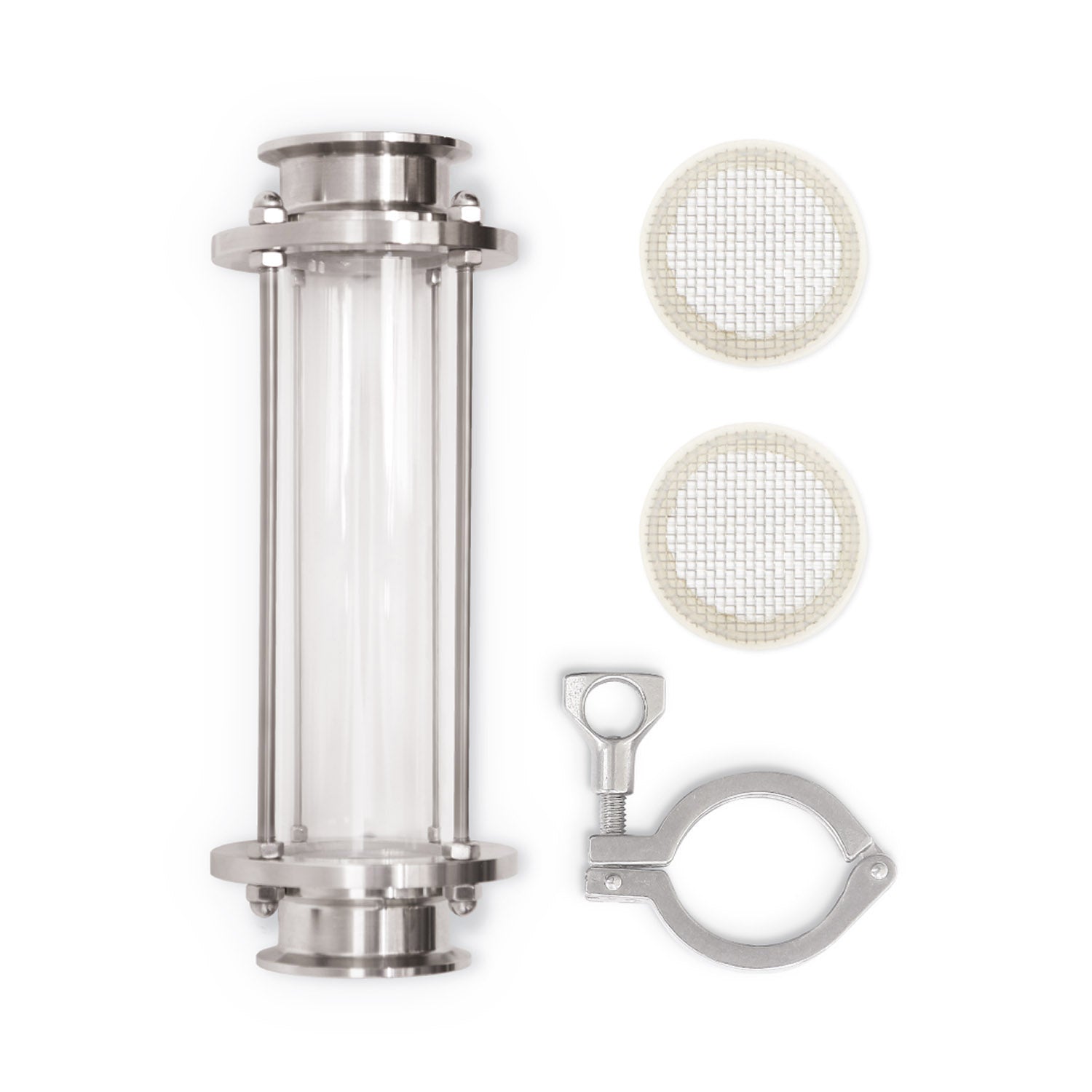

• 1 x Sight glass botanical basket with 2" tri-clamp ferrules
• 1 x 2” Tri-clamp
• 2 x Mesh filters (size 10)

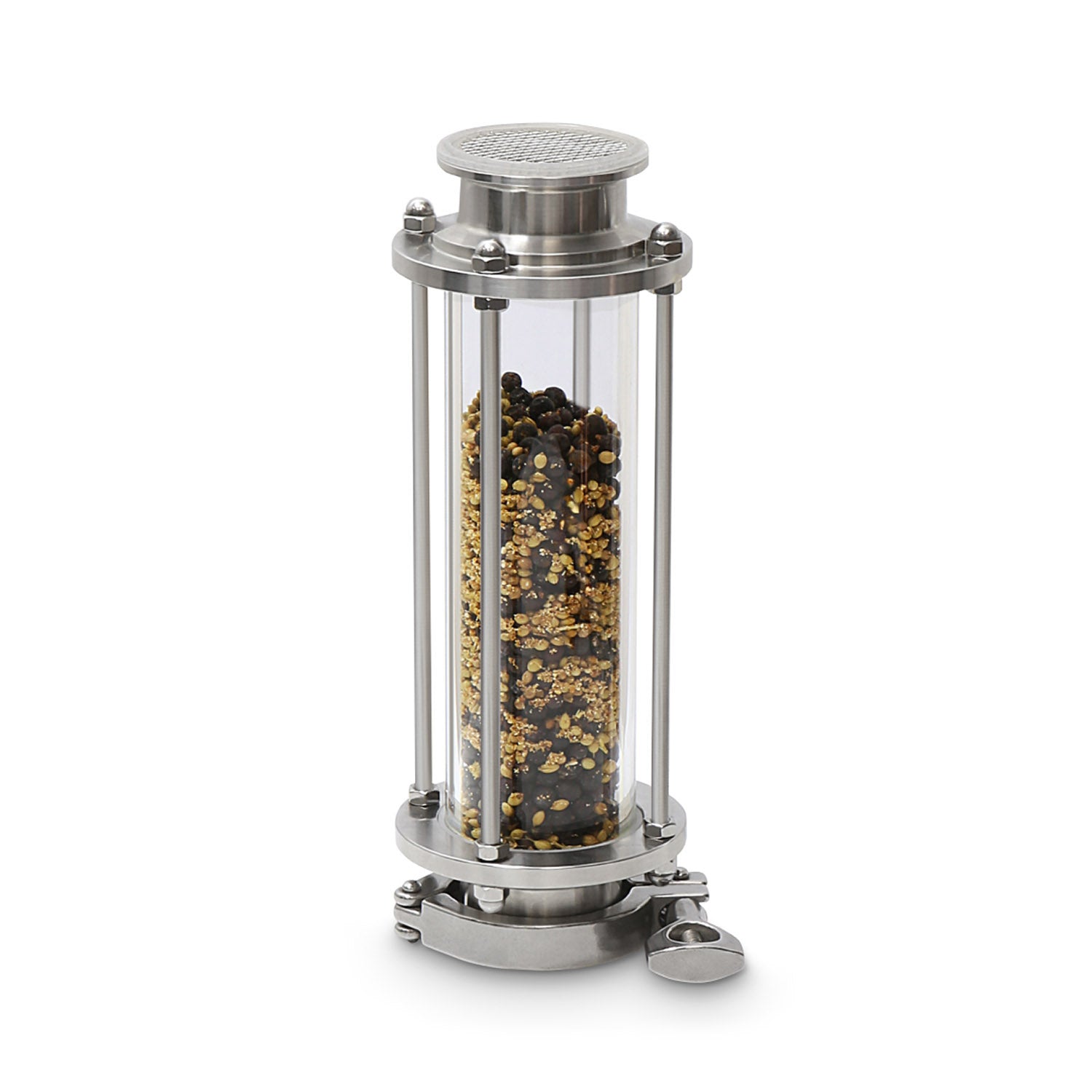

For use as a botanical basket:
1. Attach the sight glass to the lid of your distilling system using one of the mesh filters and the 2” tri-clamp.
2. Fill the sight glass with your desired amount of botanicals - up to a maximum of 150 g (5.2oz).
3. Put the second mesh filter on the top of the sight glass.
4. Using a 2” tri-clamp, connect the top of the sight glass to your condensing set up.

For use as a sight glass:
1. Attach the sight glass to the lid of your distilling system using the 2” tri-clamp.
2. Using a 2” tri-clamp, connect the top of the sight glass to your condensing set up (mesh filters are not required).

Cleaning: Clean with warm water and a cleaner suitable for use with brewing and distilling equipment. Using a pipe brush, clean away all residual oils on the glass. Disassembly should only be required if heavy soiling around the silicone components exists. There is no need to sanitise the sight glass.

Note: For use as a column extension with packing material, coarse mesh is required to prevent flooding.

CAUTION: After distillation is complete, the sight glass will be very hot. Allow to cool before handling
